Rocker Roller Bearings

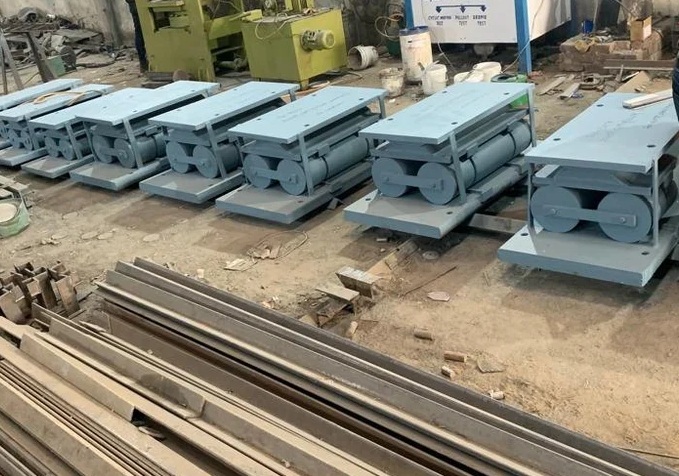

The roller bearing consists of a base plate, two or more rollers, and a top plate. The rocker and roller end is made by providing a saddle and knuckle plate on top of the rollers whereas the same arrangement except rollers is at the rocker end. The rocker and roller end of bearing permits translation as well as rotation, whereas the rocker end permits only rotation.
A moderate amount of maintenance can keep the bearings intact and can continue to work properly for a long period of time.
Rocker and Roller Standard Bearings
Rocker bearings are of various types and styles which are only limited by the imagination of the engineer or the designer. Some railroad companies still have the standard types and sizes. The standard styles are Expansion Rocker Bearings and Fixed Rocker Bearings.
We are Manufacturer & Supplier of Rocker Roller Bearing and our set up is situated in Pune, Maharashtra, India. Rocker roller bearing transfers vertical and horizontal load. It allows movement and rotation along one axis. They are further categorized into three types based on its functions:
TYPE |
Rocker roller Free bearing |
Rocker roller Guided bearing |
Rocker Fixed bearing |
Load Bearing |
Yes |
Yes |
Yes |
Movement |
In Both Direction |
Only In One Direction |
No |
Rotation |
Along One Axis |
Along One Axis |
Along One Axis |
Structural Design
The design of rocker and roller bearing involves the selection of roller length, its diameter, the radius of the contact surface of saddle/ knuckle, thickness and plan size of the base plate and number and size of anchor bolts.
Typical applications include construction, bridge bearings, pedestrian footbridges, storage tanks & structure expansion, power plants, Cooling tower and movement joints.
