Expansion Joints
Reliable Expansion Joints for Structural Integrity and Longevity
Expansion joints are designed to accommodate the displacements and rotations of the bridge structures as freely as possible and to ensure operational and traffic safety under all project-specific climatic and other operation conditions. Expansion joints are custom-designed and fabricated to accommodate the structural movements of highway bridges and various civil engineering works.
Expansion joints are custom-designed and fabricated to accommodate the structural movements of highway bridges and various civil engineering works.
Types Of Expansion Joints
- Compression Seal Joints
- Strip Seal (Single Seal) Joint
- Finger Joint

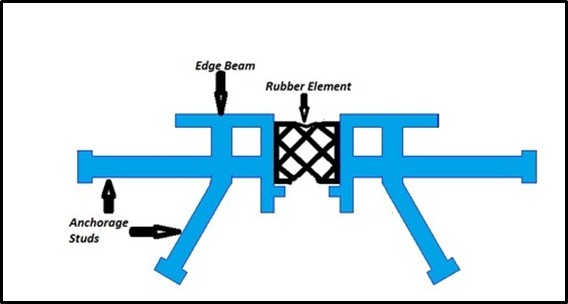

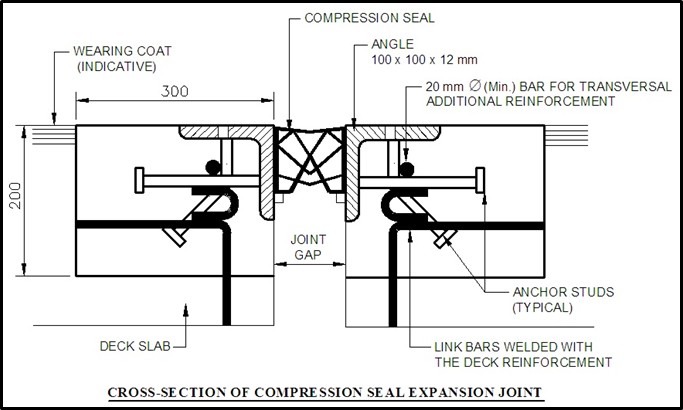

Compression Seal Joints
Durable & Efficient Solutions for Structural Expansion Needs. Delivering high-quality compression seal joints, designed to accommodate movements in structures caused by thermal expansion, shrinkage, or seismic activities. These joints offer superior sealing performance and durability, ensuring the longevity and safety of infrastructure.
Key Features of Compression Seal Joints
Accommodates large movements in bridges, highways, and other civil structures.
Ideal for extreme environmental conditions and heavy-duty applications.
Simplifies construction and reduces maintenance downtime.
Used in bridges, parking decks, high-speed rail corridors, and airports.
Compression seal joints are rigorously tested to meet global industry standards. The use of advanced elastomers ensures maximum resistance against abrasion, UV radiation, and chemical degradation, making them ideal for high-traffic areas. These joints play a critical role in maintaining the structural integrity of Mumbai-Ahmedabad High-Speed Rail Corridor, Pamban Bridge, and other landmark projects across India.

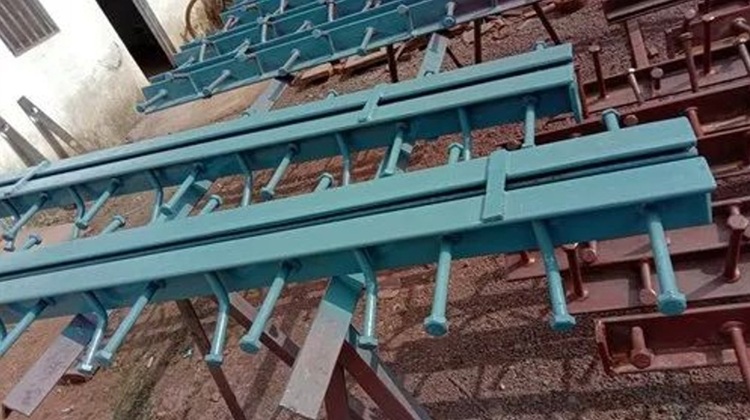

Strip Seal (Single Seal) Joints

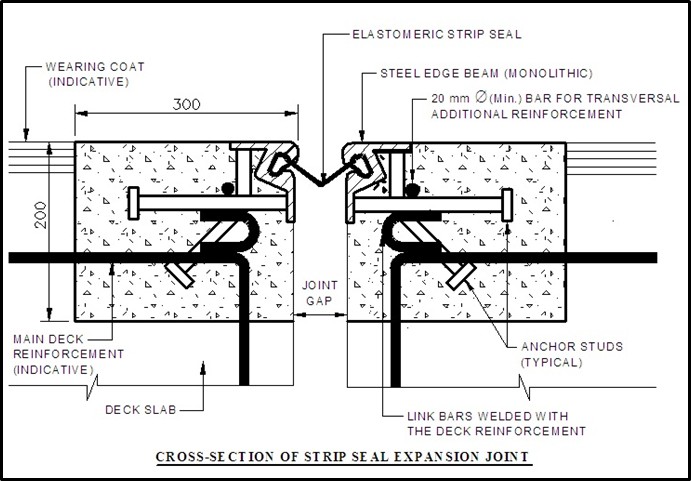

The Strip Seal system is a unique concept for effectively sealing expansion joints in bridges and structures with movements up to 125 mm.
Single-Seal Expansion Joints are available in different versions for constructive systems exposed to traffic. In all types of constructive systems there is clear distinction between the two main functions "inflexible anchoring" and "watertight connection“. This allows for best possible adjustment of the two components sealing profile and edge construction to the conditions of the traffic road.
Type of expansion joints required for different thermal Expansion
- F Type (Edge Beam) Single Strip Seal Expansion Joint
- T & F Type (Edge Beam) Single Strip Seal Expansion Joint
- 75 X 75 X 10 MM Angle Type (Edge Beam) Single Strip Seal Expansion Joint
- Finger Teeth Type Expansion Joint

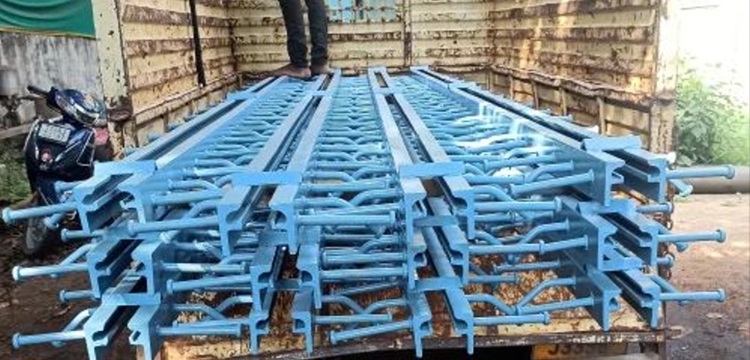

F Type (Edge Beam) Single Strip Seal Expansion Joint
75 X 75 X 10 MM Angle Type (Edge Beam) Single Strip Seal
Expansion Joint

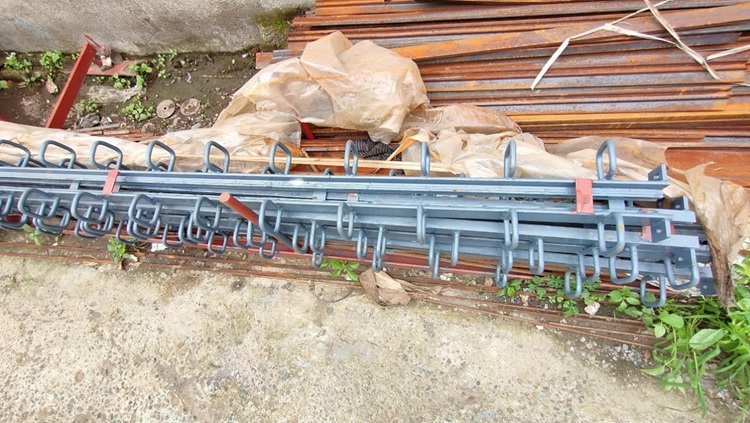

T Type (Edge Beam) Single Strip Seal Expansion Joint

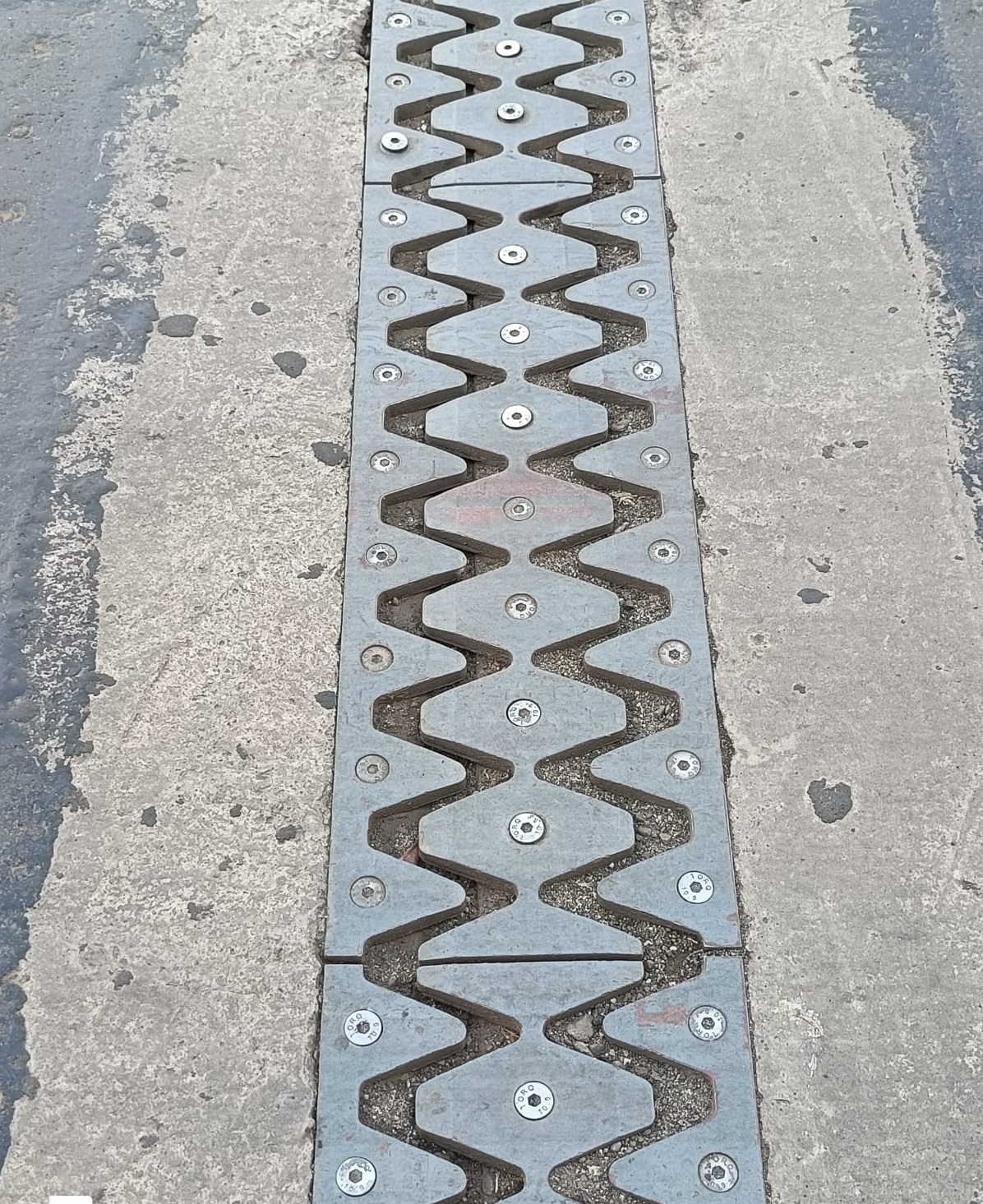

Finger Joint
The design, manufacturing, and supply of finger joints—essential components for modern bridge structures. finger joints are engineered to accommodate significant movements caused by thermal expansion, seismic activities, and dynamic loads, ensuring long-lasting performance and safety.

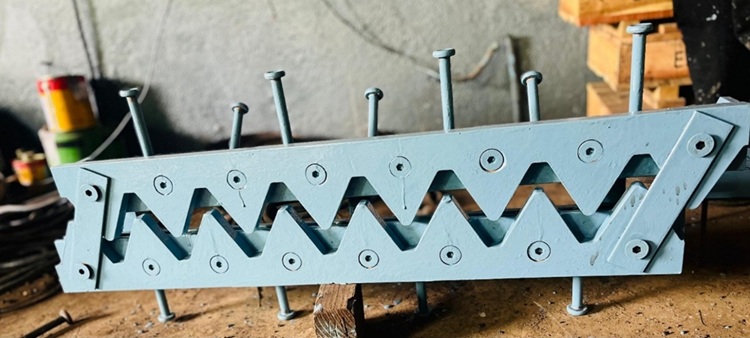

Finger Teeth Type Expansion Joint
Advanced Design
Bridge finger joints are designed for horizontal and vertical movements and are ideal for handling large expansion gaps. The unique finger design minimizes wear and tear, reduces noise, and provides smooth transitions for vehicles, enhancing driving comfort on bridges and highways.
High-Performance Materials
Ensures the use of corrosion-resistant materials, extending the life of the finger joints even in challenging environmental conditions. These joints are suitable for highway bridges, railways, and high-speed corridors, meeting global safety standards and infrastructure demands.
Applications
Finger joints are widely used in projects such as flyovers, long-span bridges, and expressways. They are integral to the Mumbai-Ahmedabad High-Speed Rail Corridor and bullet train infrastructure, where precision, durability, and flexibility are critical.
We are having the most modern Manufacture facility of Expansion Joint in pirangut, Pune. We can design Expansion Joint as per the requirements of the bridge span and having the team to guide and inspect the installation of Expansion Joint. We are having the full testing facility for the testing of Expansion Joint.

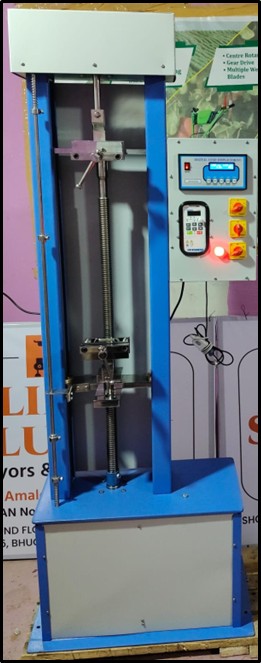

Rubber Elgonation Testing Machine

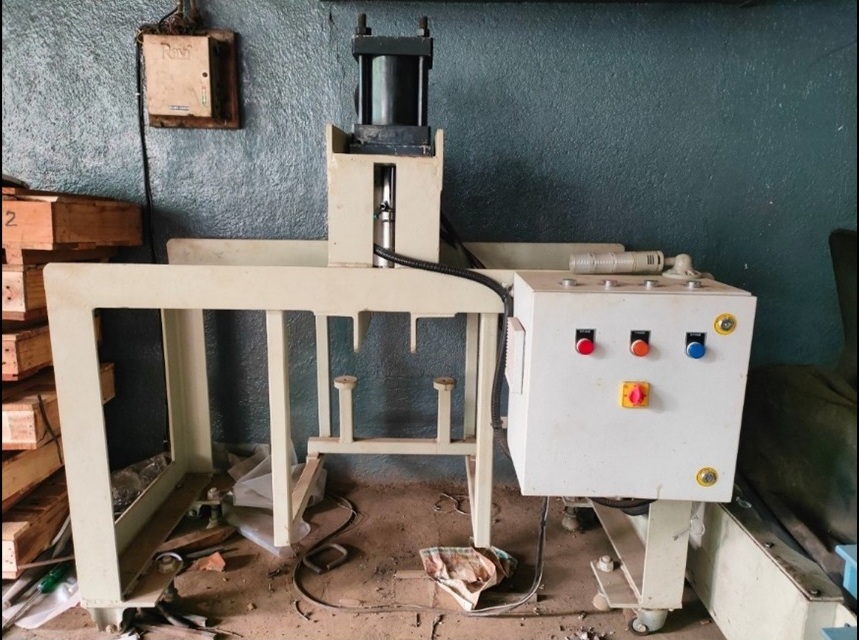

Pull out Test Testing Machine
